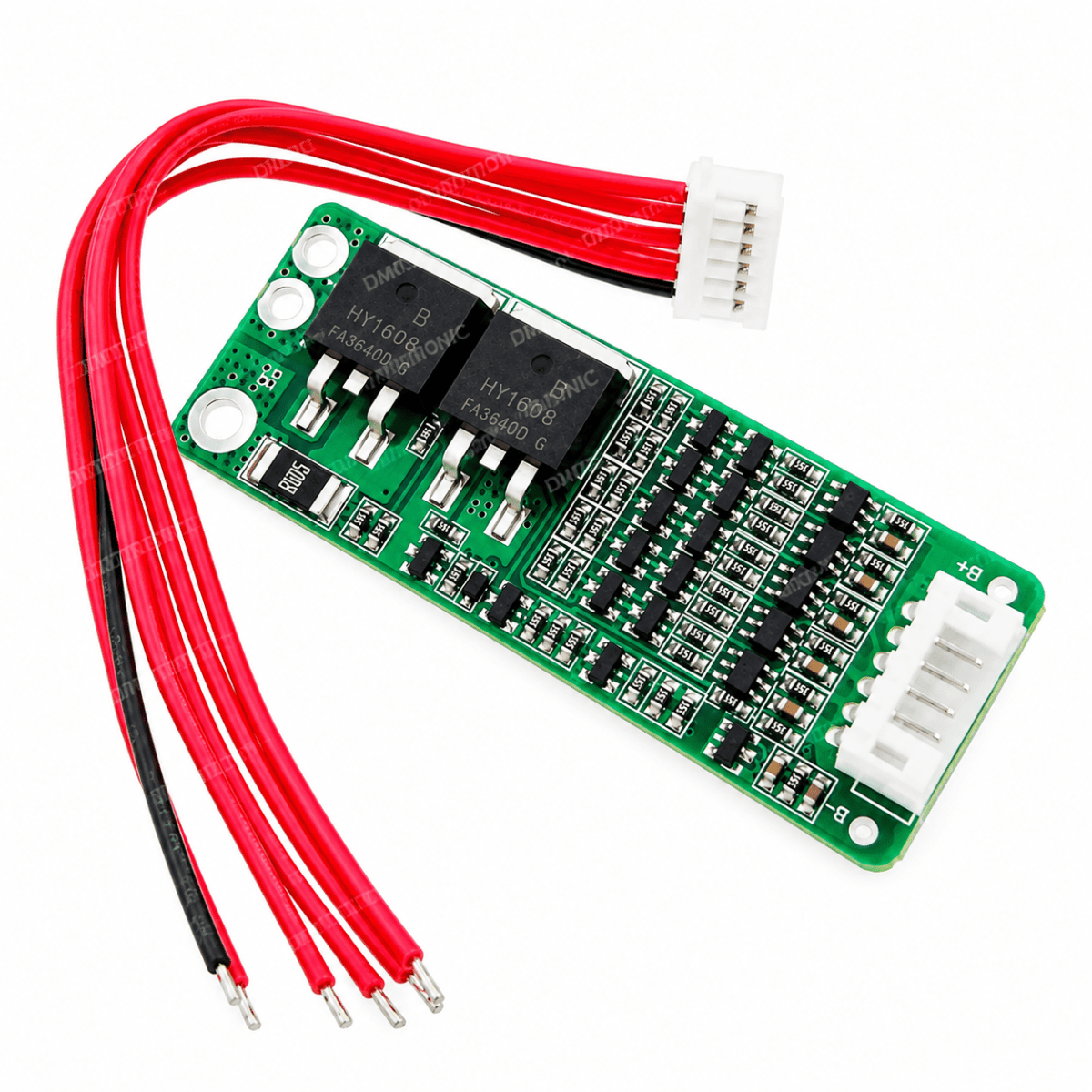

The BMS 5S 15A Li-Ion Battery Protection Board is designed for 5-series Li-ion battery packs. It provides an 18.5V nominal pack voltage and requires a 21V charging voltage, with protection against overcharge, over-discharge, overcurrent and short circuit.
Full Description
The 5S 15A Lithium Battery BMS Protection Board is designed to protect and manage lithium battery packs consisting of five cells or cell groups connected in series.
When used with standard 3.7V nominal Li-ion cells, a 5S pack has a nominal voltage of approximately 18.5V and reaches 21V when fully charged.
The BMS provides protection against overcharge, over-discharge, overcurrent and short circuit. Certain versions are rated for up to 15A continuous discharge current and approximately 25A peak current.
Important: A BMS is not a replacement for a proper Li-ion charger. A suitable charger regulated to 21V should be used for a 5S battery pack. Specifications such as cell balancing, charging current and board dimensions can vary between 5S 15A versions.
Technical Specifications
| Specification |
Details |
| Product Type |
BMS / Lithium Battery Protection Board |
| Battery Configuration |
5S – Five cells/groups in series |
| Battery Type |
Li-ion / Li-Po |
| Nominal Pack Voltage |
18.5V |
| Full Charge Voltage |
21V |
| Continuous Discharge Current |
Up to 15A |
| Peak Discharge Current |
Up to 25A depending on version |
| Charging Current |
Up to 15A on some versions |
| Overcharge Protection |
Yes |
| Over-Discharge Protection |
Yes |
| Overcurrent Protection |
Yes |
| Short-Circuit Protection |
Yes |
| Overcharge Protection Threshold |
Approx. 4.28V ± 0.05V per cell on some versions |
| Over-Discharge Threshold |
Approx. 2.55V ± 0.08V on some versions |
| Cell Balancing |
Version-dependent |
| Required Charger Voltage |
21V DC |
| Compatible Cells |
18650 and compatible Li-ion/Li-Po cells |
| Dimensions |
Version-dependent; approx. 90 × 16 × 3mm on some versions |
Product Applications
- 5S 18650 battery packs
- 18.5V Li-ion battery systems
- Power tool battery packs
- Robotics and portable equipment
- DIY electronics projects
- Portable power systems
- Rechargeable lithium battery packs
