The 2S 8A Li-Ion BMS Protection Board is designed for two-cell-series lithium-ion battery packs. It provides a 7.4V nominal battery voltage, requires an 8.4V charging voltage, and supports up to 8A continuous operating current. Protection functions include overcharge, over-discharge, overcurrent and short-circuit protection.
Full Description

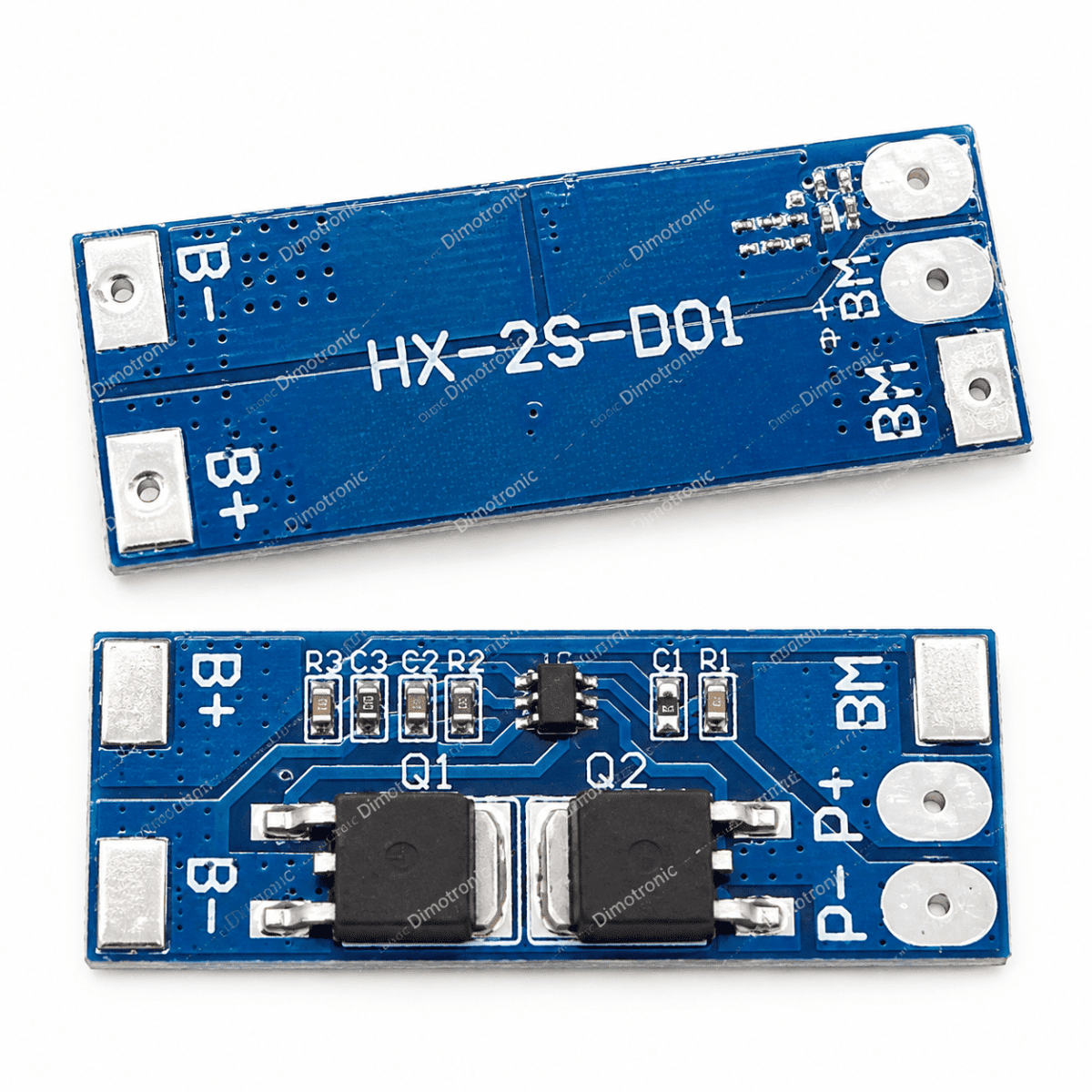

The 2S 8A Li-Ion Battery BMS Protection Board is designed to protect and manage lithium-ion battery packs configured as 2S, with two cell groups connected in series.
A typical 2S Li-Ion pack has a 7.4V nominal voltage and reaches 8.4V when fully charged. The board supports up to 8A continuous current, with protection against overcharge, over-discharge, overcurrent and short-circuit conditions.
This type of BMS is commonly used with 18650 Li-Ion cells and other compatible lithium-ion cells.
Important: This is a battery protection/BMS board, not a charger. An appropriate 8.4V charger or CC/CV charging source should be used for a 2S Li-Ion pack.
Technical Specifications
| Specification |
Details |
| Product Type |
BMS / Battery Protection Board |
| Battery Configuration |
2S – 2 groups in series |
| Battery Type |
Li-Ion |
| Nominal Voltage |
7.4V |
| Full Charge Voltage |
8.4V |
| Maximum Continuous Current |
8A |
| Peak Current |
Up to 15A depending on version |
| Required Charging Voltage |
8.4V |
| Overcharge Protection |
Yes |
| Over-Discharge Protection |
Yes |
| Overcurrent Protection |
Yes |
| Short-Circuit Protection |
Yes |
| Overcharge Detection |
Approx. 4.25–4.35V per cell |
| Over-Discharge Detection |
Approx. 2.5–3.0V per cell, version dependent |
| Compatible Cells |
18650 and compatible Li-Ion cells |
| Connections |
B+, B-, BM, P+, P-, depending on board version |
| Board Type |
PCB |
Product Applications
- 2S 18650 battery packs
- Rechargeable Li-Ion battery packs
- Portable speakers
- DIY electronics projects
- Portable power systems
- Robotics and RC projects
- 7.4V Li-Ion powered devices
