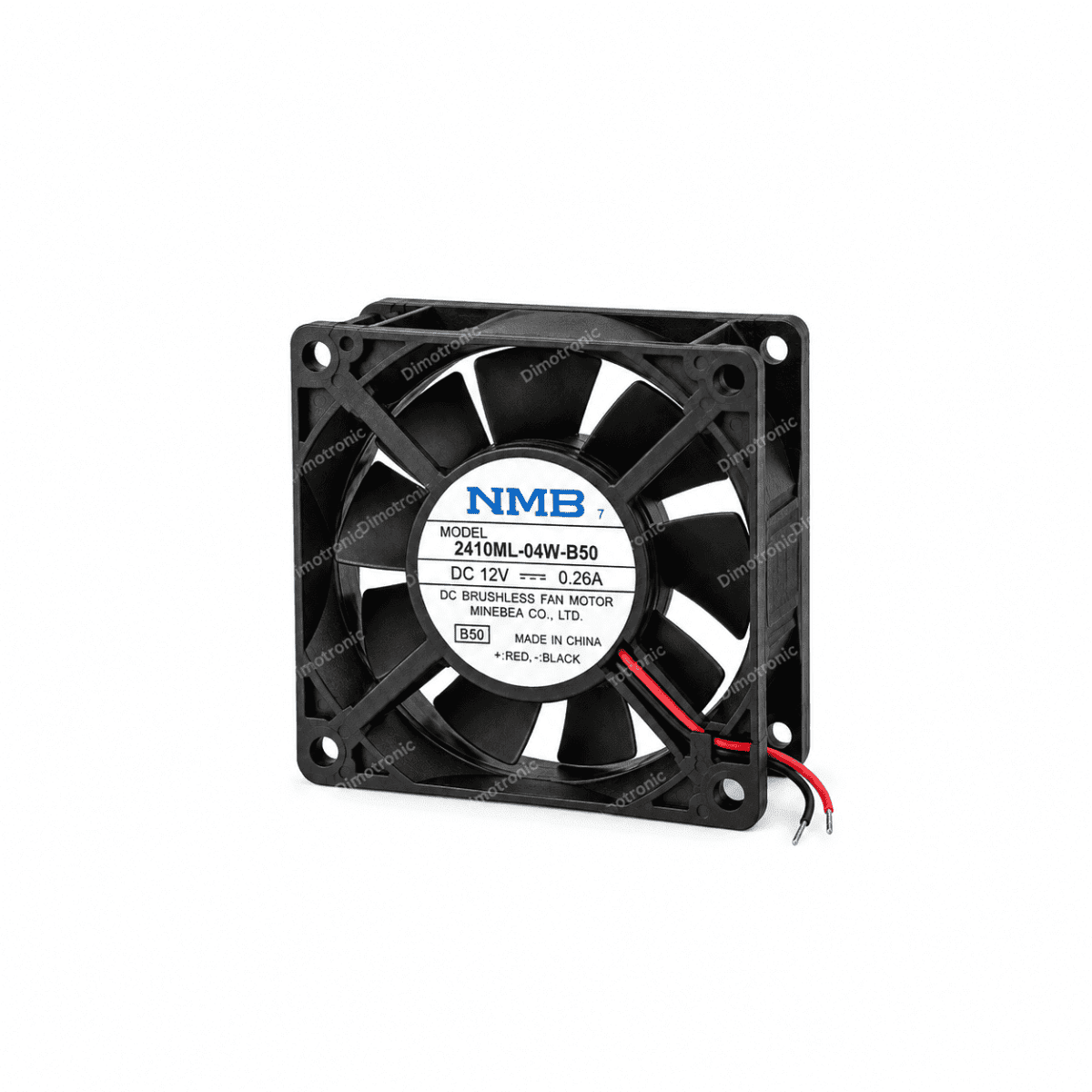

The NMB 2410ML-04W-B50 is a DC axial cooling fan rated at 12V DC and 0.26A, with 60×60×25mm dimensions and a ball-bearing design. It is suitable for electronic equipment and cooling applications.
Full Description
The NMB 2410ML-04W-B50 is a compact DC axial cooling fan designed for continuous cooling of electronic equipment and systems.
The model is rated for 12V DC. Some supplier listings specify 0.26A, while NMB's published specification for the B50 version lists 0.20A. Therefore, 0.26A should be used for your store listing if that is the value printed on your actual fan.
The fan measures 60×60×25mm, uses a ball-bearing design, and has a published speed of approximately 4900 RPM with airflow up to approximately 23.3 CFM according to NMB specifications.
Technical Specifications
| Specification |
Details |
| Brand |
NMB / NMB-MAT |
| Model |
2410ML-04W-B50 |
| Fan Type |
DC Axial / Tubeaxial Fan |
| Rated Voltage |
12V DC |
| Rated Current |
0.26A according to product listing |
| Calculated Power |
Approx. 3.12W |
| Dimensions |
60 × 60 × 25 mm |
| Bearing Type |
Ball Bearing |
| Speed |
Approx. 4900 RPM |
| Airflow |
Approx. 23.3 CFM |
| Maximum Static Pressure |
Approx. 62.2 Pa |
| Noise Level |
Approx. 35–36.5 dB, depending on specification version |
| Weight |
Approx. 65g |
| Fan Type |
DC Brushless / Axial |
| Application |
Electronic Equipment Cooling |
There are minor differences between published versions of the specification: NMB's official data lists 0.20A and 36.5dB, while some supplier listings specify 0.26A.
Product Applications
- Computer cooling.
- Electronic equipment cooling.
- Networking equipment.
- Communication equipment.
- Ventilation and cooling systems.
- Replacement for compatible 60×60×25mm fans.
- Industrial and electronic equipment.
- Electronics projects.
