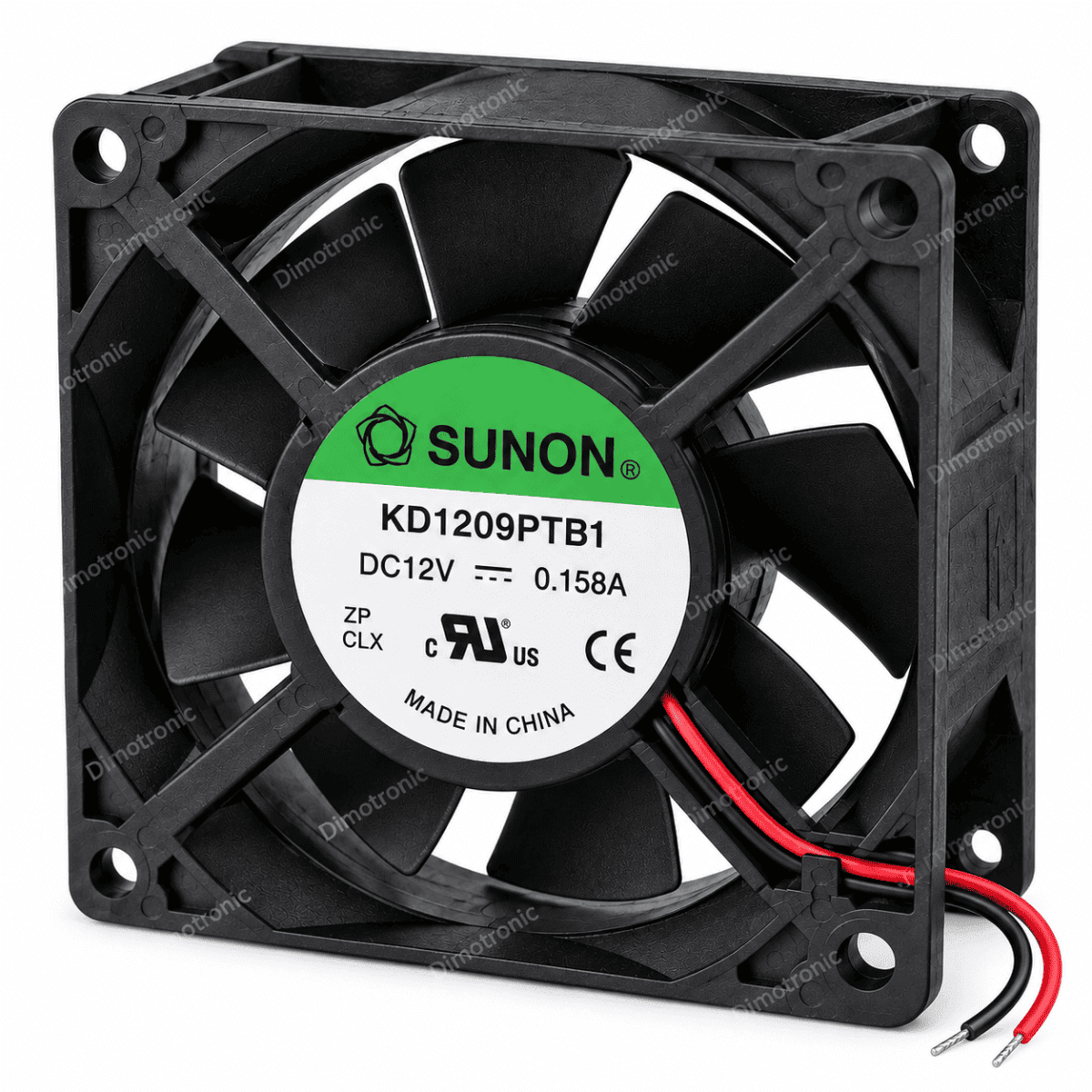

The SUNON KD1209PTB1 is a 12V DC brushless cooling fan rated at approximately 0.158A, featuring a ball-bearing design and 92×92×25mm dimensions. SUNON published specifications list approximately 0.16A for this model.
Full Description
The SUNON KD1209PTB1 is a DC brushless axial cooling fan designed for continuous cooling of electronic equipment and systems.
It operates at 12V DC with a current of approximately 0.158A based on the product information provided, while SUNON's published specifications list approximately 0.16A nominal current. The fan measures 92×92×25mm and uses a dual ball-bearing design.
Published specifications indicate a rotational speed of approximately 2800 RPM, airflow of approximately 49 CFM, and a noise level of approximately 35 dBA.
Technical Specifications
| Specification |
Details |
| Brand |
SUNON |
| Model |
KD1209PTB1 |
| Fan Type |
DC Brushless Fan |
| Rated Voltage |
12V DC |
| Current |
Approx. 0.158A |
| Power |
Approx. 1.9W |
| Dimensions |
92 × 92 × 32 mm |
| Bearing Type |
Ball Bearing / 2 Ball |
| Speed |
Approx. 2800 RPM |
| Airflow |
Approx. 49 CFM |
| Static Pressure |
Approx. 0.17 inH₂O |
| Noise |
Approx. 35 dBA |
| Fan Design |
Tubeaxial |
| Wires |
2 wires |
| Application |
Electronic equipment cooling |
Product Applications
- Computer cooling.
- Electronic equipment cooling.
- Networking and communication equipment.
- Ventilation and cooling systems.
- Replacement cooling applications.
- Electronics projects.
- Equipment requiring a 92mm cooling fan.
