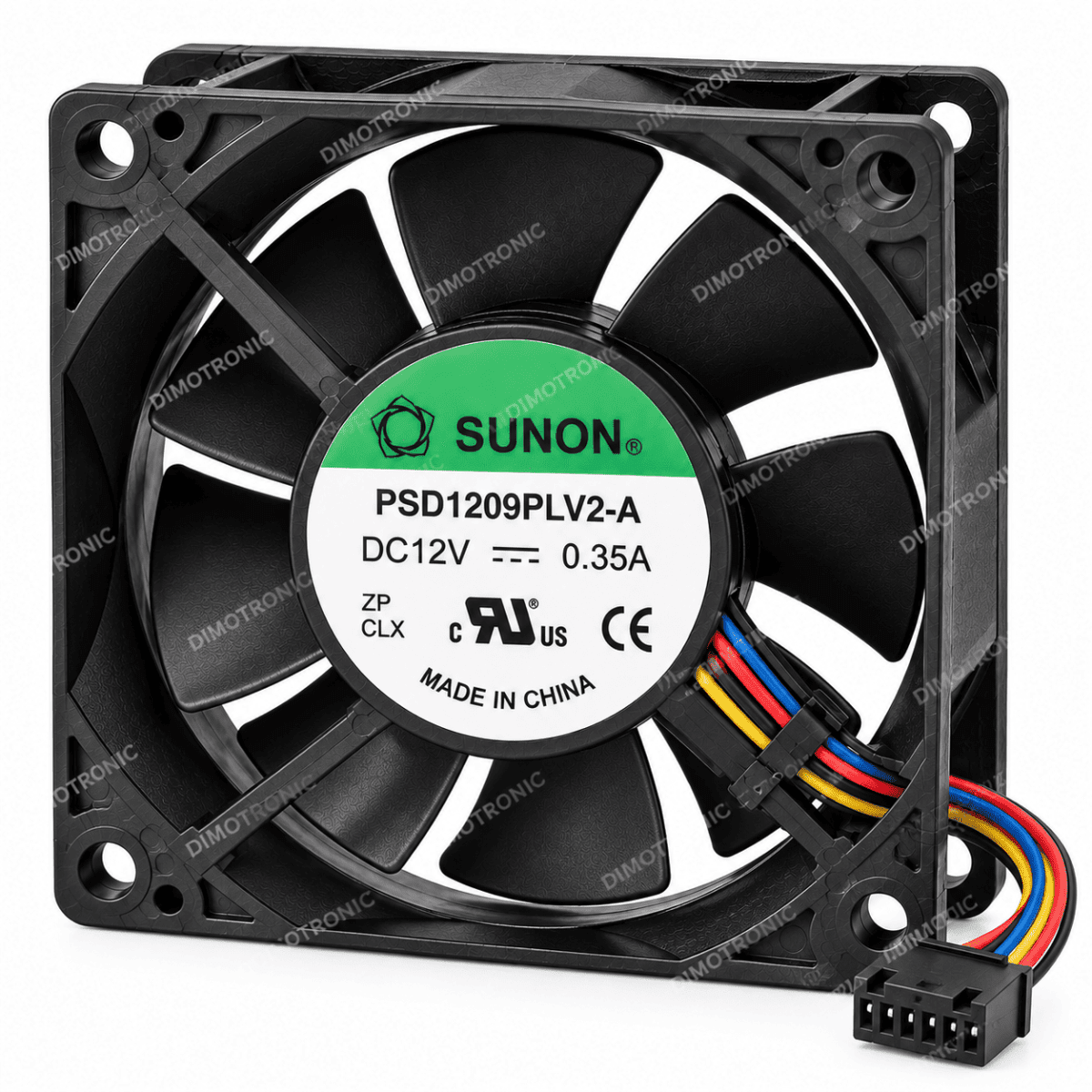

The SUNON PSD1209PLV2-A is a high-performance DC brushless axial cooling fan rated at 12V DC, 0.35A and 4.2W. It provides up to 4000 RPM speed and 79 CFM airflow in a compact 92×92×32mm design.
Full Description
The SUNON PSD1209PLV2-A is a compact, high-airflow DC brushless axial fan designed for cooling electronic and industrial equipment. Its 92×92×32mm form factor makes it suitable for applications where reliable forced-air cooling is required.
The fan operates at 12V DC with a rated current of 0.35A, consuming approximately 4.2W. It reaches 4000 RPM and delivers up to 79 CFM of airflow, with a rated noise level of approximately 42.1 dB(A). The SUNON specification lists a VAPO bearing and a static pressure of 0.36 Inch-H₂O.
Connector configuration can vary by version. Some PSD1209PLV2-A versions use a 4-wire, 5-pin PWM configuration, so the connector should be checked against the actual fan before installation.
Technical Specifications
| Specification |
Details |
| Brand |
SUNON |
| Model |
PSD1209PLV2-A |
| Fan Type |
DC Brushless Axial Fan |
| Rated Voltage |
12V DC |
| Rated Current |
0.35A |
| Power Consumption |
4.2W |
| Dimensions |
92 × 92 × 32 mm |
| Speed |
4000 RPM |
| Airflow |
79 CFM |
| Static Pressure |
0.36 Inch-H₂O |
| Noise Level |
42.1 dB(A) |
| Bearing |
VAPO Bearing |
| Weight |
Approx. 186g |
| Connector |
Version-dependent; 4-wire / 5-pin PWM versions available |
| Motor Type |
DC Brushless |
| Airflow Direction |
Axial |
Product Applications
- Computer and server cooling
- Power supply cooling
- Industrial equipment
- Inverters and converters
- Telecommunications equipment
- Electronic control systems
- Machinery and automation equipment
- Cooling electronic components
