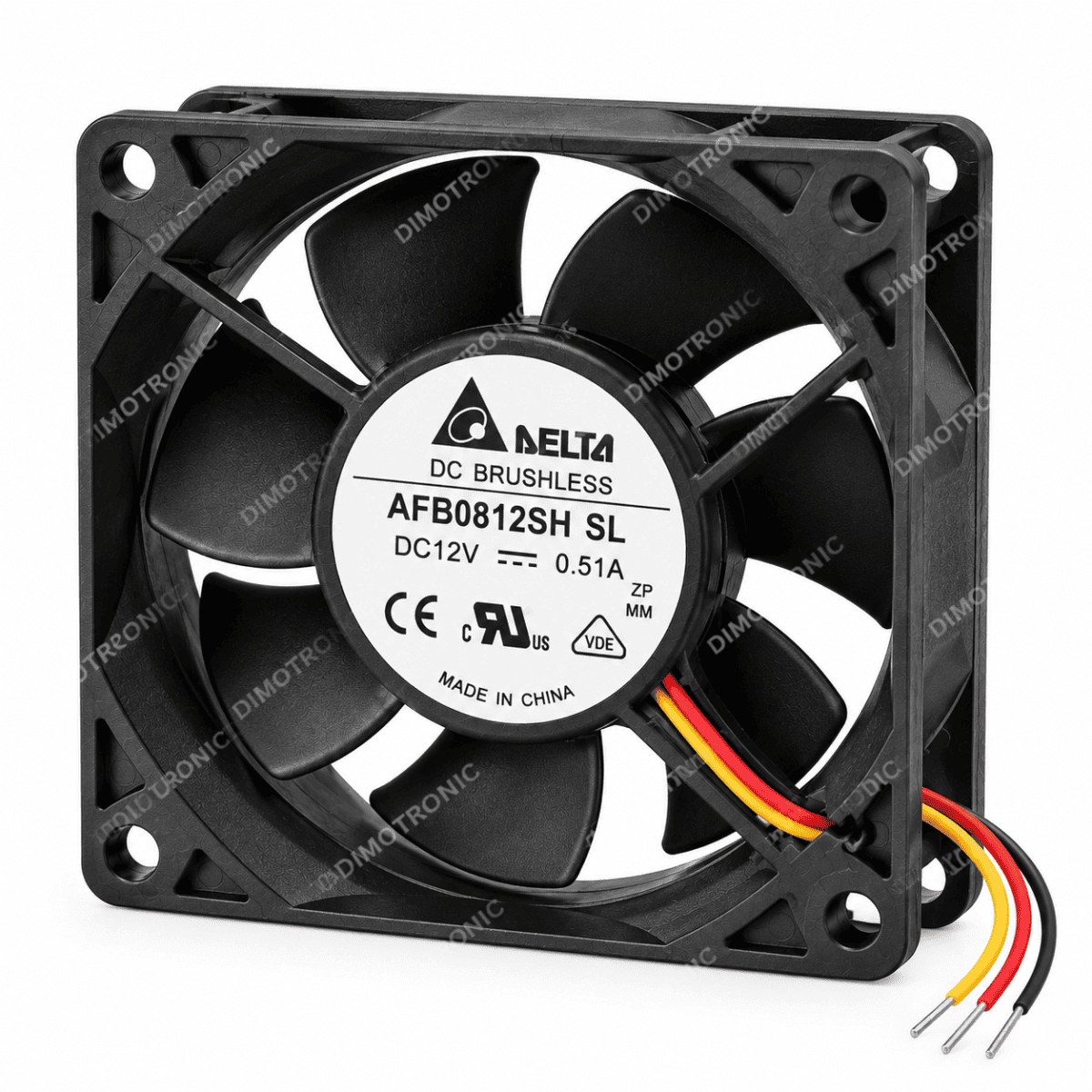

The DELTA AFB0812SH is a high-performance 12V DC brushless axial cooling fan rated at 0.51A, with 80×80×25.4mm dimensions, approximately 4000 RPM speed and 46.62 CFM airflow.
Full Description
The DELTA AFB0812SH is a high-performance DC brushless axial fan designed for electronic and industrial cooling applications requiring strong airflow and reliable operation.
It operates at 12V DC / 0.51A and measures 80×80×25.4mm. The fan uses a ball-bearing construction and provides approximately 4000 RPM rotational speed with up to 46.62 CFM airflow. Certain versions feature a 3-wire connection with a speed/tachometer sensor.
Its combination of airflow and static pressure makes it suitable for servers, computers, power supplies, networking equipment, industrial electronics, and other applications requiring an 80mm cooling fan.
Technical Specifications
| Specification |
Details |
| Brand |
DELTA Electronics |
| Model |
AFB0812SH |
| Fan Type |
DC Brushless Axial Fan |
| Rated Voltage |
12V DC |
| Rated Current |
0.51A |
| Power |
Approx. 4.08W |
| Dimensions |
80 × 80 × 25.4 mm |
| Speed |
Approx. 4000 RPM |
| Airflow |
Approx. 46.62 CFM |
| Maximum Static Pressure |
Approx. 6.78 mmH₂O |
| Noise Level |
Approx. 40 dBA |
| Bearing Type |
Ball Bearing |
| Connection |
3-Wire / 3-Pin, depending on version |
| Sensor |
Speed / Tach Sensor |
| Operating Voltage Range |
7–13.8V DC |
| Operating Temperature |
Approx. -10 to +70°C |
| Application |
Electronic & Equipment Cooling |
Product Applications
- Server cooling.
- Computer cooling.
- Power supply cooling.
- Networking and communication equipment.
- Industrial electronics.
- Electronic equipment ventilation.
- Replacement for compatible 80mm fans.
- Applications requiring high airflow and static pressure.
