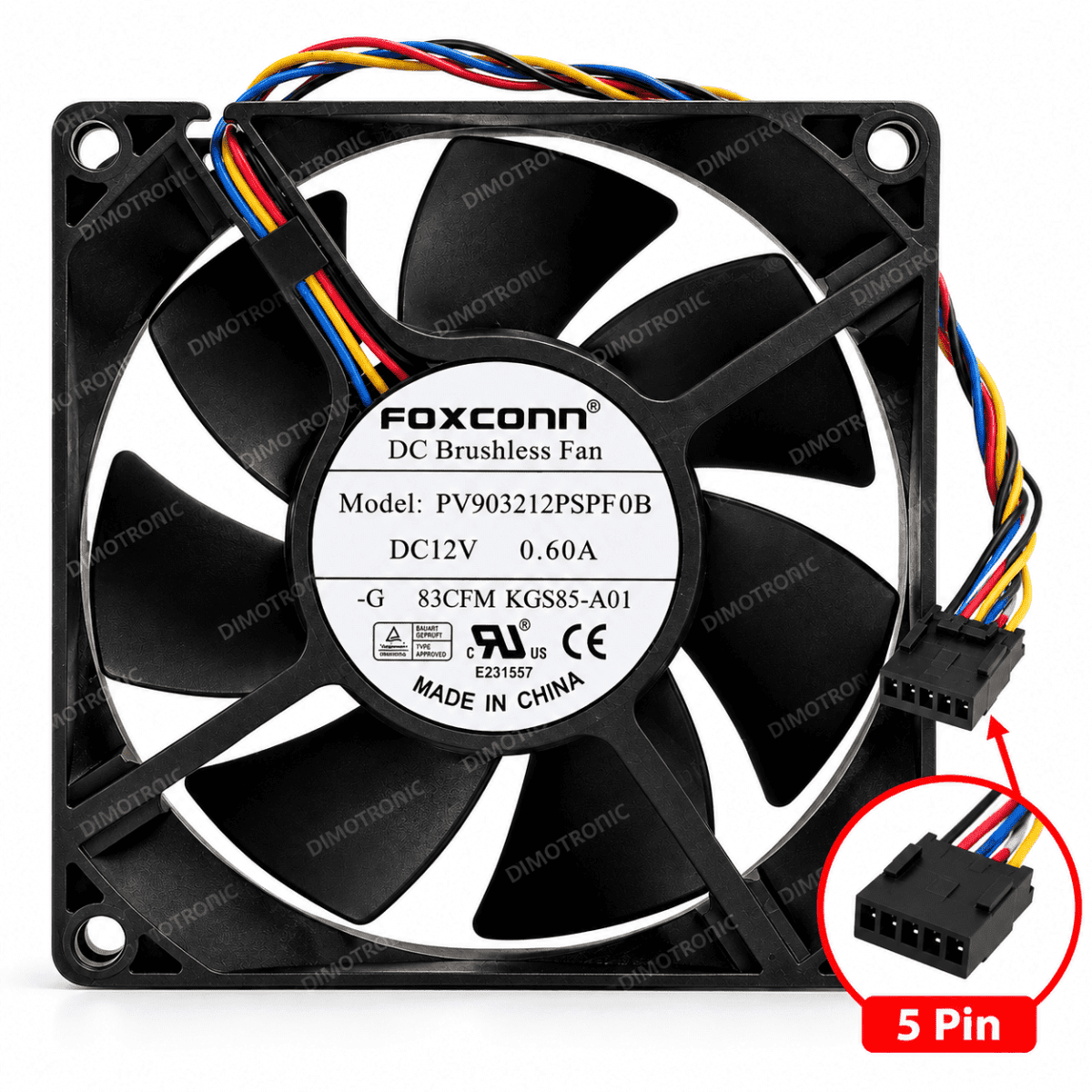

FOXCONN PV903212PSPF DC brushless axial cooling fan rated at 12V and 0.6A, with a 92×92×32mm frame, 4-wire connection, PWM speed control, and tachometer feedback. Suitable for computers, servers, and electronic equipment.
Full Description
The FOXCONN PV903212PSPF is a high-performance DC brushless axial cooling fan designed to provide strong airflow for computers, servers, power equipment, and electronic systems.
It operates at 12V DC and 0.6A, with approximately 7.2W power consumption, and features a 92×92×32mm frame. Available specifications list approximately 4000 RPM and up to 83 CFM airflow. The PV903212PSPF is also available with a ball bearing and supports PWM speed control together with a tachometer signal for monitoring fan speed.
Technical Specifications
| Specification |
Details |
| Brand |
FOXCONN |
| Model |
PV903212PSPF / PV903212PSPFOB |
| Fan Type |
DC Brushless Axial Fan |
| Rated Voltage |
12V DC |
| Rated Current |
0.6A |
| Power |
Approx. 7.2W |
| Dimensions |

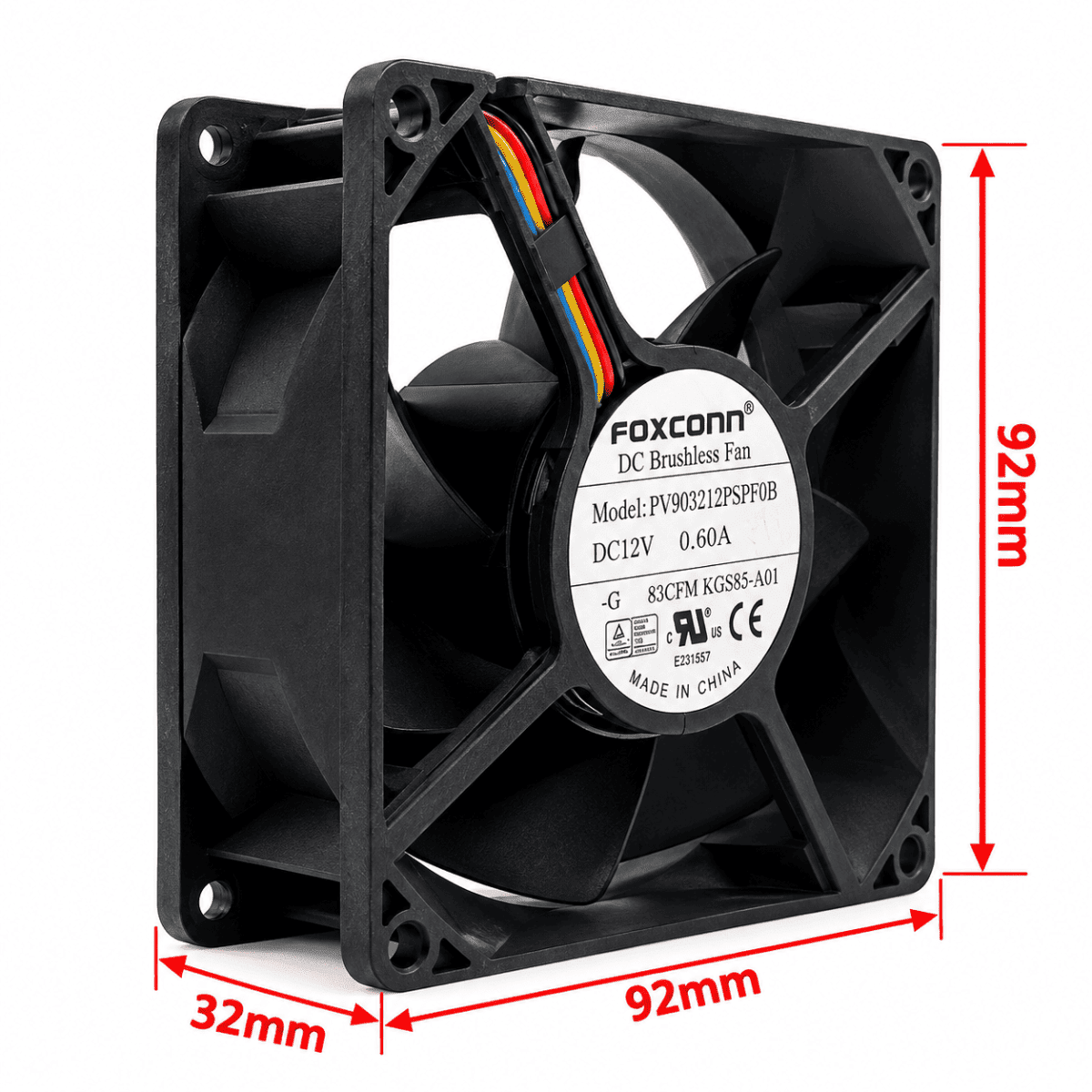

92 × 92 × 32mm |
| Speed |
Approx. 4000 RPM |
| Airflow |
Approx. 83 CFM |
| Bearing |
Ball Bearing depending on version |
| Wires |
4 wires |
| Speed Control |
PWM |
| Speed Monitoring |
Tachometer / Speed Signal |
| Connector |
5-Pin |
| Color |
Black |
| Applications |
Computer, server and electronic cooling |
Product Applications
- Computer cooling
- Server and data-center cooling
- Compatible Dell systems
- Power supply cooling
- Networking and telecommunications equipment
- Industrial cooling systems
- Gaming systems
- Liquid-cooling and electronic equipment
