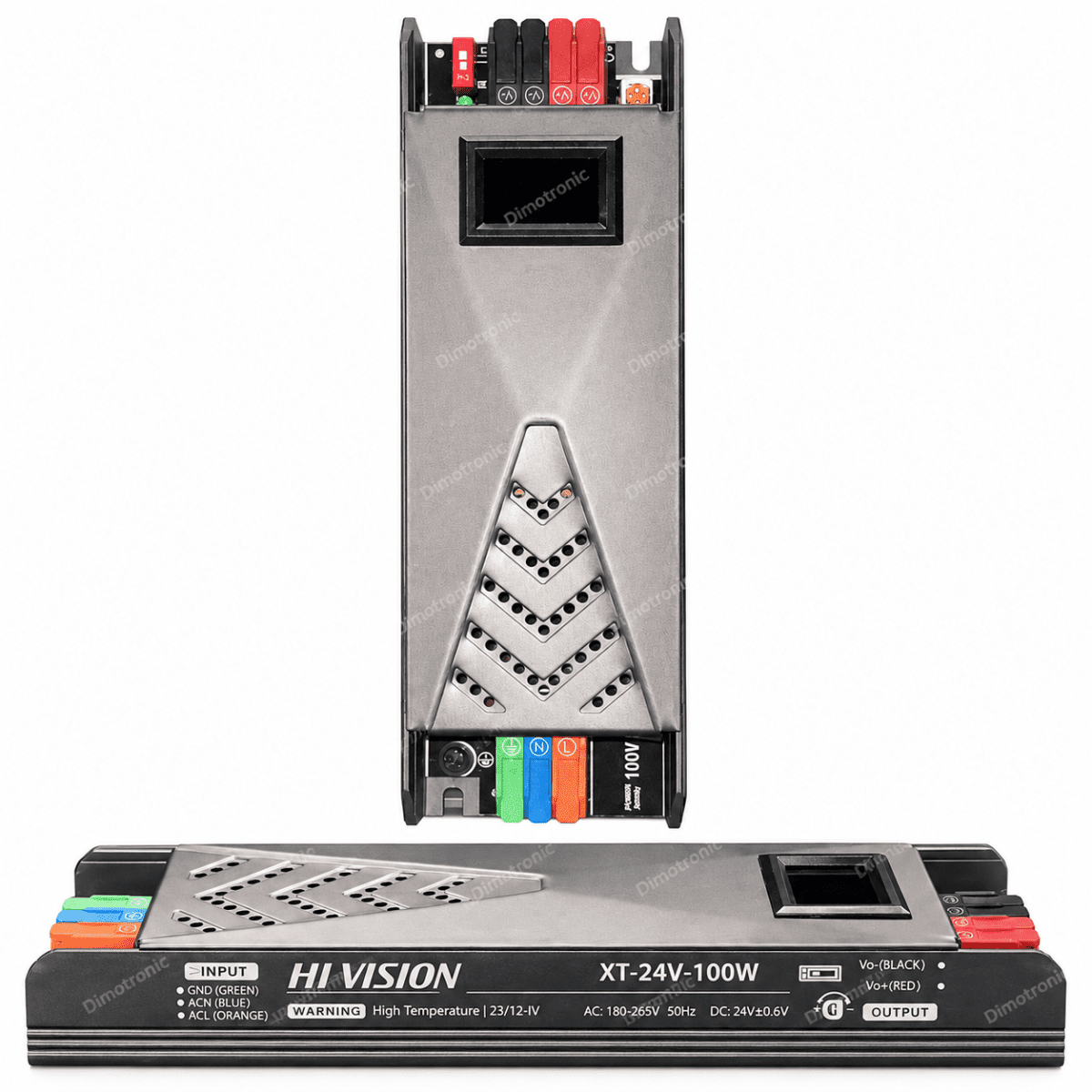

The Hi-Vision XT-24V-100W is a premium, ultra-slim constant voltage LED driver engineered for modern low-voltage lighting installations. Featuring a built-in real-time digital display screen for power tracking, color-coded quick-connect terminals, and a space-saving aluminum housing, it delivers highly stable 24V DC power up to 100W. Perfect for indoor linear LED profiles, light strips, and architectural cabinetry lighting.

Upgrade your architectural and linear lighting systems with the cutting-edge Hi-Vision XT-24V-100W Constant Voltage LED Power Supply. Purpose-built for reliability and convenience, this advanced driver converts wide-range AC inputs (180–265V) into an incredibly stable 24V DC output.

What sets the XT-24V-100W apart is its integrated top-mounted digital monitoring screen. This live interface eliminates guesswork during installation and operation by providing real-time telemetry on active power wattage and output voltage. Housed in a durable, elongated aluminum chassis with arrow-patterned convective ventilation slots, it maintains exceptional passive cooling efficiency without the noise of an internal fan.

Wiring is entirely toolless and error-proof, thanks to distinct, color-coded terminal blocks on both ends: a green, blue, and orange input array for secure mains connection, and high-visibility red and black spring terminals for low-voltage output. With heavy-duty safety protocols covering short-circuits, overcurrent overloads, and extreme temperatures, this power supply ensures your high-end LED installations run safely and continuously for years to come.

Technical Specifications:

• Brand / Model: Hi-Vision XT-24V-100W
• Type: Constant Voltage LED Driver / Power Supply
• Input Voltage Range: AC 180–265V ~ 50Hz
• Output Voltage: DC 24V (±0.6V variance)
• Maximum Output Power: 100 Watts
• Maximum Output Current: ~4.17 Amps
• Display Interface: Live Top-Mounted Digital LCD Screen (Monitors Voltage & Wattage Load)
• Input Terminals: Quick-Connect Push Terminals — Green (GND), Blue (ACN), Orange (ACL)
• Output Terminals: Quick-Connect Push Terminals — Black (Vo-), Red (Vo+)
• Cooling Method: Natural Air Convection (Arrow-slotted Aluminum Chassis)
• Built-in Safety Protections: Short-Circuit Protection, Over-Current (Overload) Protection, Over-Temperature Auto-Shutoff
• Environment Rating: IP20 (Indoor Use Only)
