Original Cisco AC/DC power adapter, model AD10048P3, rated at 48V DC / 2.08A (100W) with universal 100–240V AC input. Suitable for compatible Cisco networking equipment, including devices such as the Cisco ASA 5505.
The Cisco AD10048P3 is a high-quality AC/DC power adapter designed to provide stable 48V DC power to compatible Cisco networking equipment.

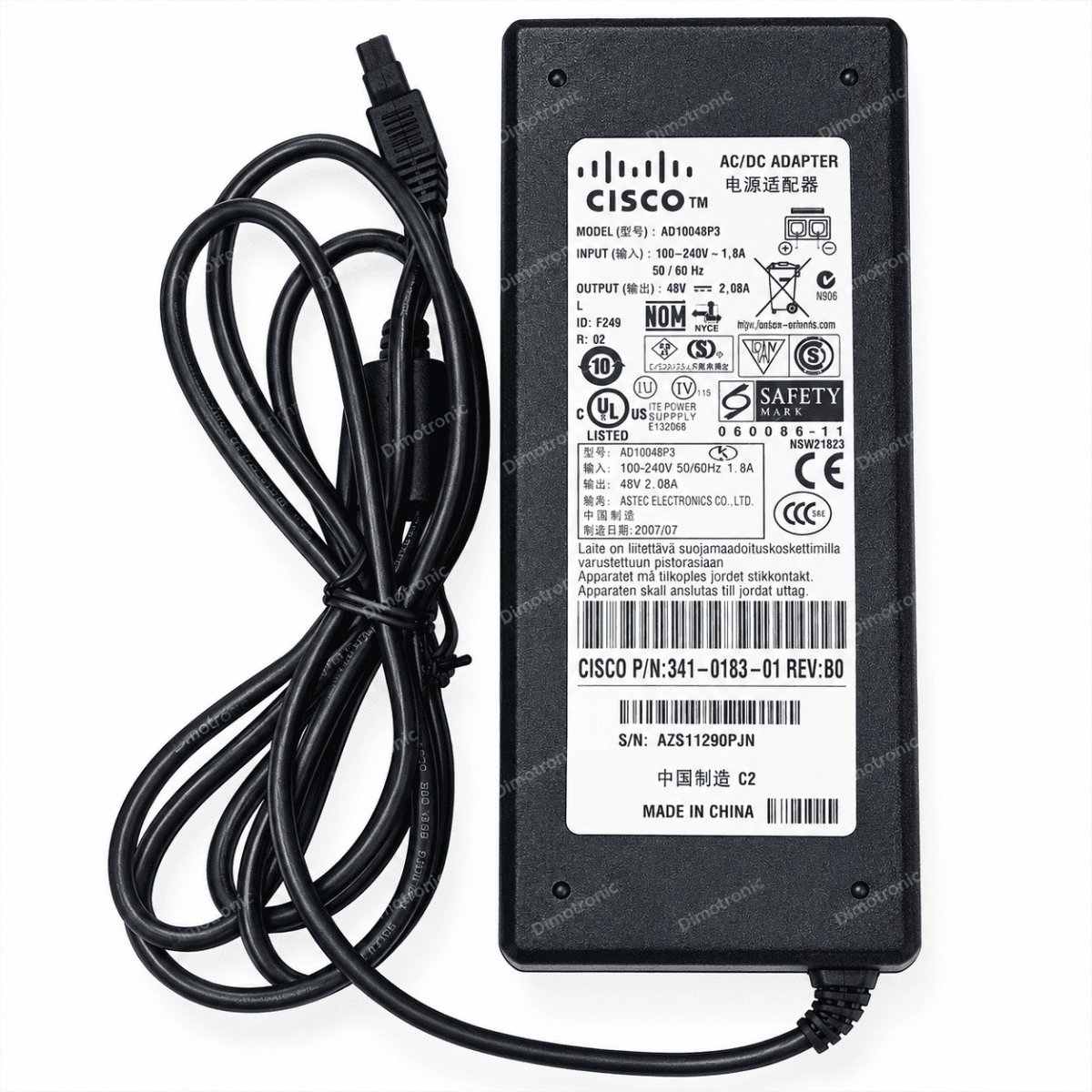

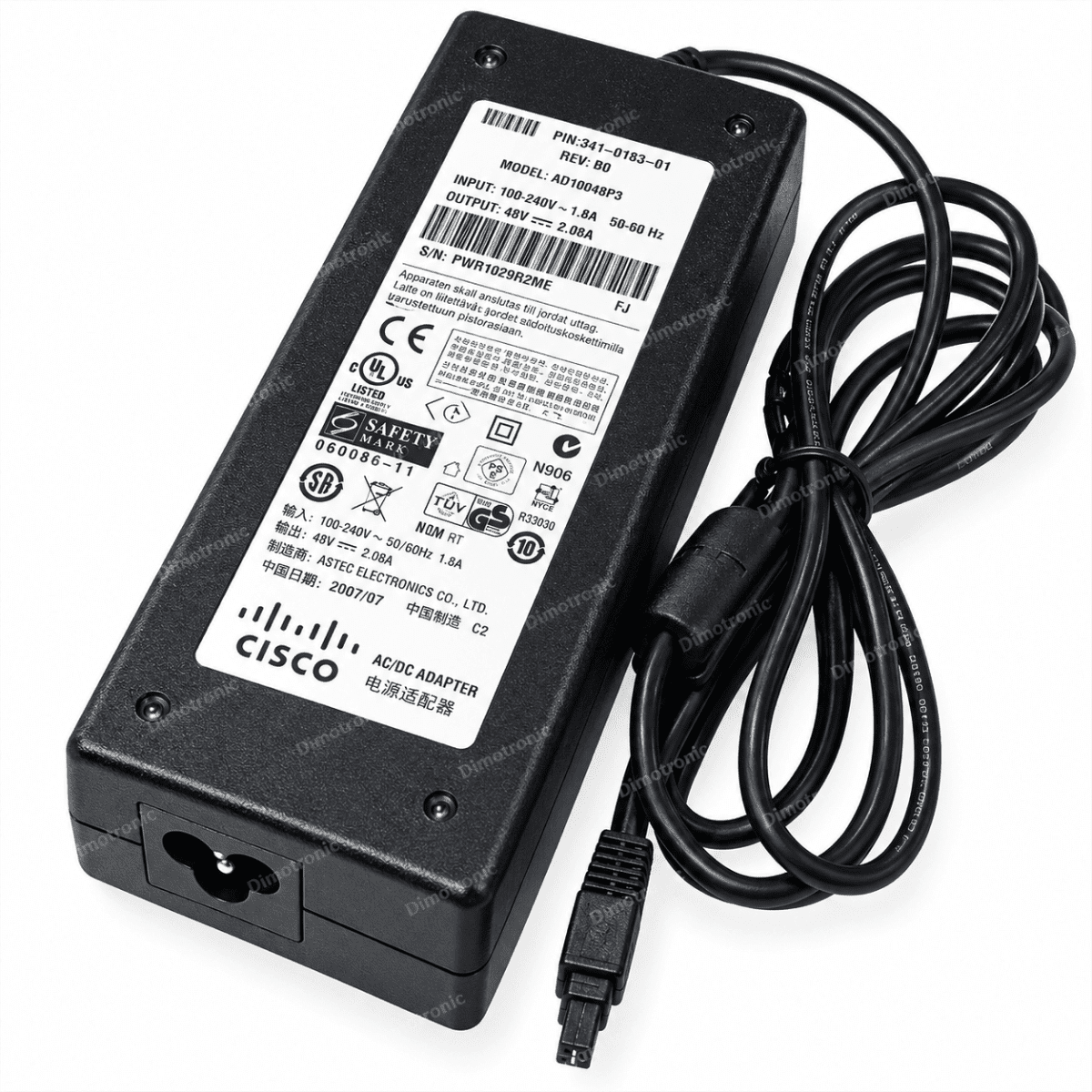

According to the label visible on the adapter, the unit is rated for 100–240V AC input at 50/60Hz and 1.8A, with an output of 48V DC at 2.08A. The label also identifies the model as AD10048P3 and Cisco part number 341-0183-01.
The adapter is commonly listed for use with Cisco equipment such as the ASA 5505 and other compatible networking devices requiring a 48V DC / 2.08A power source.
Important: Please verify the voltage, current, connector type, polarity, and part number of your original power supply before connecting this adapter.
Technical Specifications
| Specification |
Details |
| Brand |
Cisco |
| Product Type |
AC/DC Power Adapter |
| Model |
AD10048P3 |
| Cisco P/N |
341-0183-01 |
| Output Voltage |
48V DC |
| Output Current |
2.08A |
| Rated Power |
Approx. 100W |
| Input Voltage |
100–240V AC |
| Input Frequency |
50/60Hz |
| Input Current |
1.8A according to photographed label |
| ID |
F249 |
| Revision |
R:02 |
| Manufacturer shown |
ASTEC Electronics Co., Ltd. |
| Country of Manufacture |
Made in China |
| Safety Marks |
CE, UL and other certification markings shown on label |
| Part Number |
341-0183-01 REV:B0 |
| Serial Number |
AZS11290PJN — product-specific |
| Typical Application |
Cisco networking equipment |
| Common Compatibility |
Cisco ASA 5505 and compatible equipment |
The 48V / 2.08A / 100W specification and AD10048P3 / 341-0183-01 identification are corroborated by multiple product listings.
