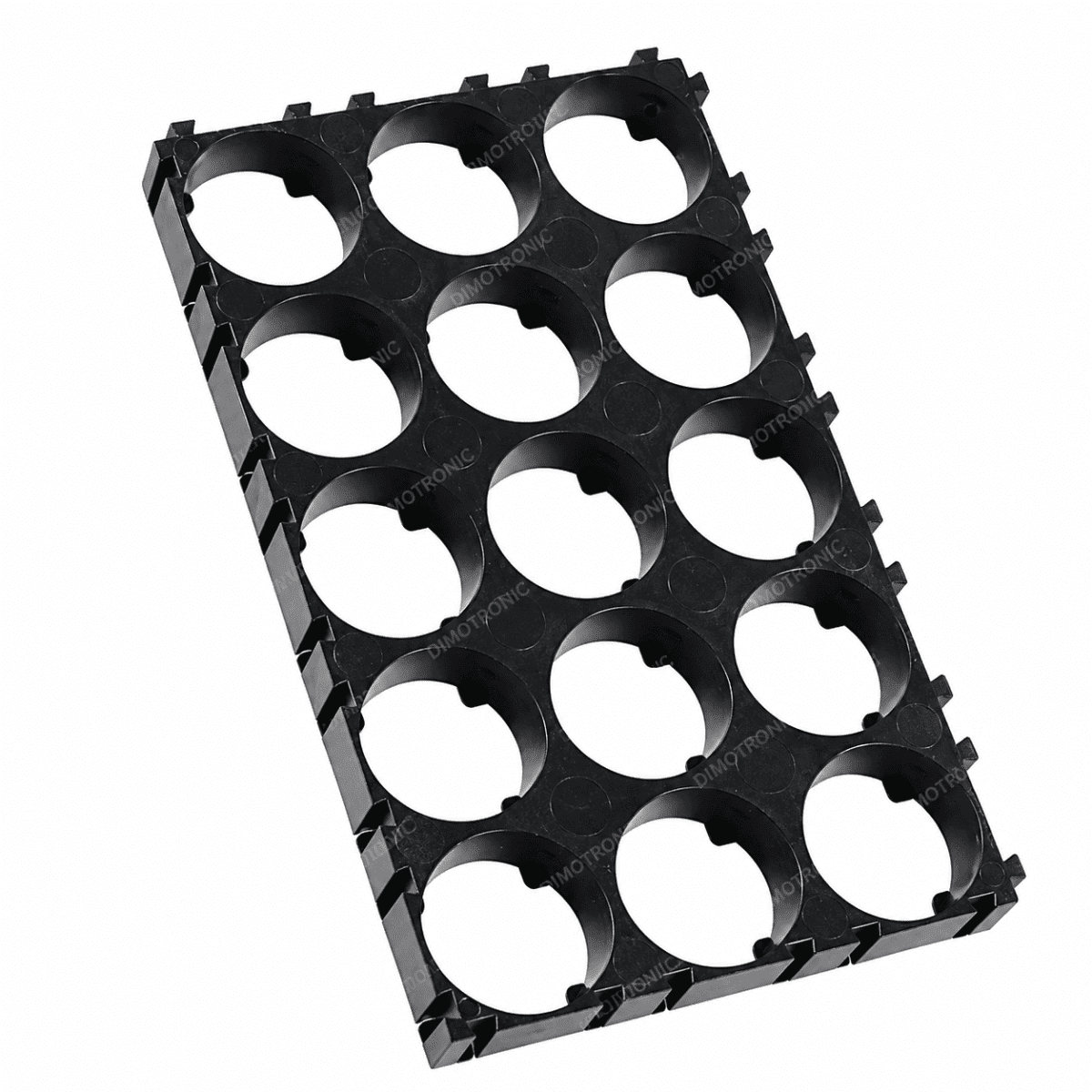

A black plastic battery holder bracket designed to arrange and secure 15 cylindrical 18650 cells in a 3×5 layout. Its interlocking design helps keep cells aligned during battery pack assembly and allows multiple brackets to be combined.
Full Description
The 3×5 18650 Battery Cell Holder Bracket is designed to organize and support cylindrical lithium-ion cells during battery pack construction.
With 15 cell openings arranged in three rows and five columns, the bracket helps maintain cell alignment and spacing. Its interlocking edges allow multiple holders to be assembled into larger battery pack configurations.

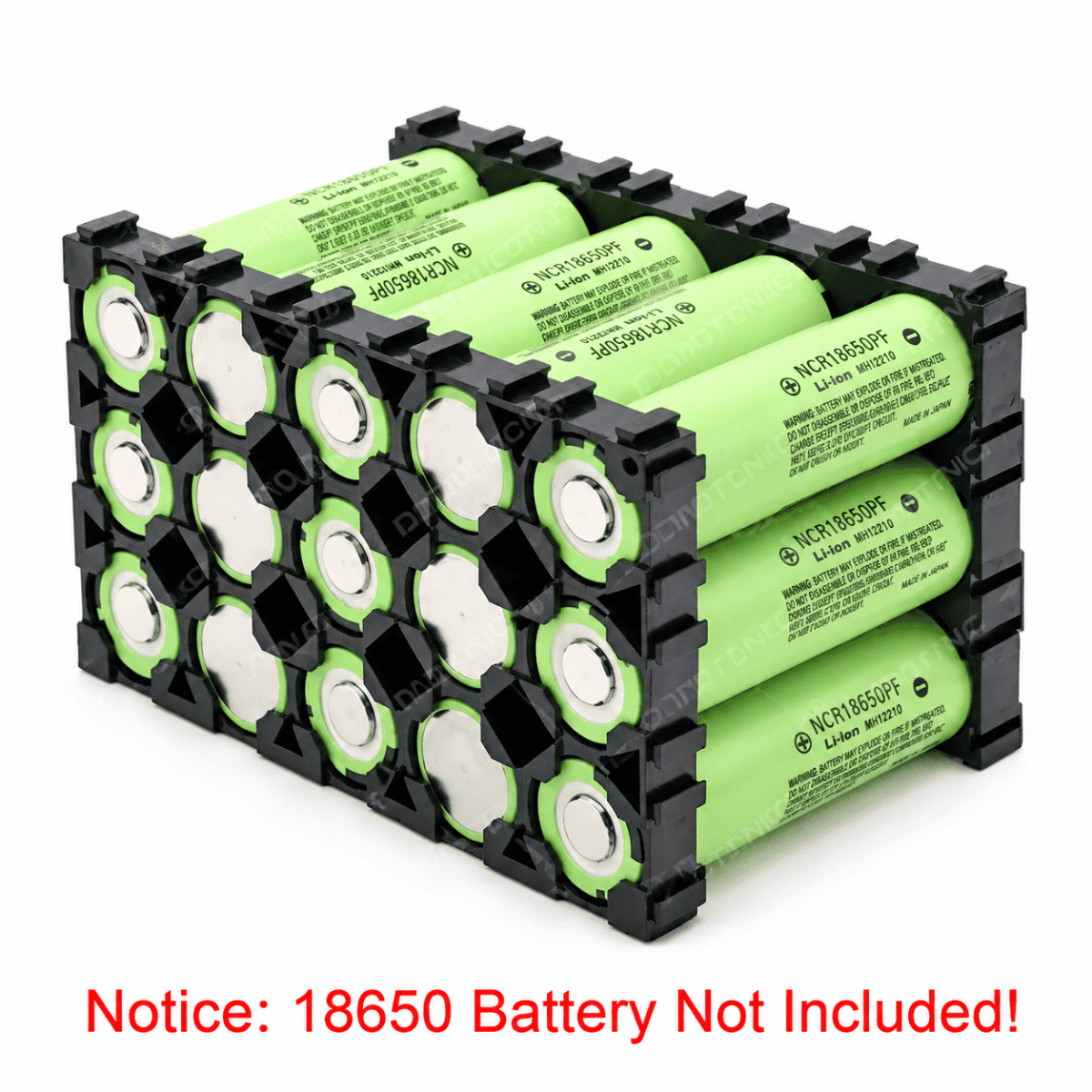

For a typical battery pack, holders may be required on both the top and bottom of the cells, depending on the assembly design. Batteries, nickel strips, and other assembly materials are not included unless specified.
Technical Specifications
| Specification |
Details |
| Product Type |
Battery Cell Holder / Spacer Bracket |
| Compatible Cell Type |
18650 |
| Cell Layout |
3×5 |
| Number of Cell Openings |
15 |
| Dimensions |
102.6 × 62.25mm, as shown in the image |
| Color |
Black |
| Material |
Plastic |
| Design |
Interlocking, expandable bracket |
| Application |
Battery cell positioning and support |
| Batteries Included |
No |
| Nickel Strips Included |
No |
Product Applications
-
18650 lithium-ion battery pack assembly.
-
Electric bicycle and scooter battery packs.
-
Power tool battery packs.
-
Energy storage systems.
-
DIY battery projects and electronics assembly.
