HI VISION XT-24V-400W switching power supply with 24V DC output and 400W rated power, designed for LED lighting, CCTV systems, control panels, electronic equipment, and other 24V applications.
Full Description
The HI VISION XT-24V-400W Switching Power Supply is a compact and practical AC-to-DC power supply designed to provide a stable 24V DC output for a wide range of electronic and electrical applications.
The unit supports an AC input voltage of 180–265V at 50Hz and provides a 24V DC output with a specified tolerance of approximately ±0.6V. With a rated power of 400W, the theoretical maximum output current is approximately 16.7A at 24V.

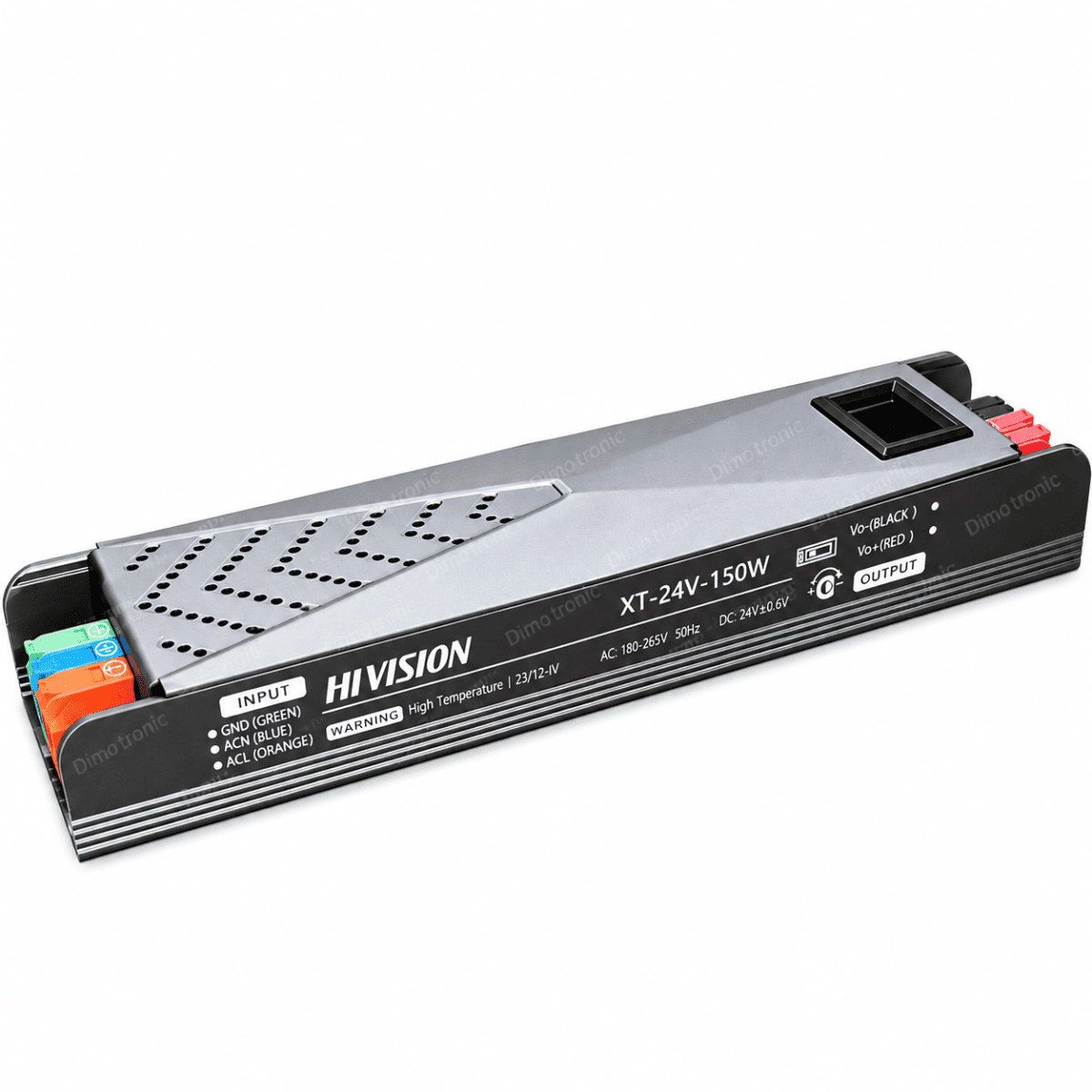

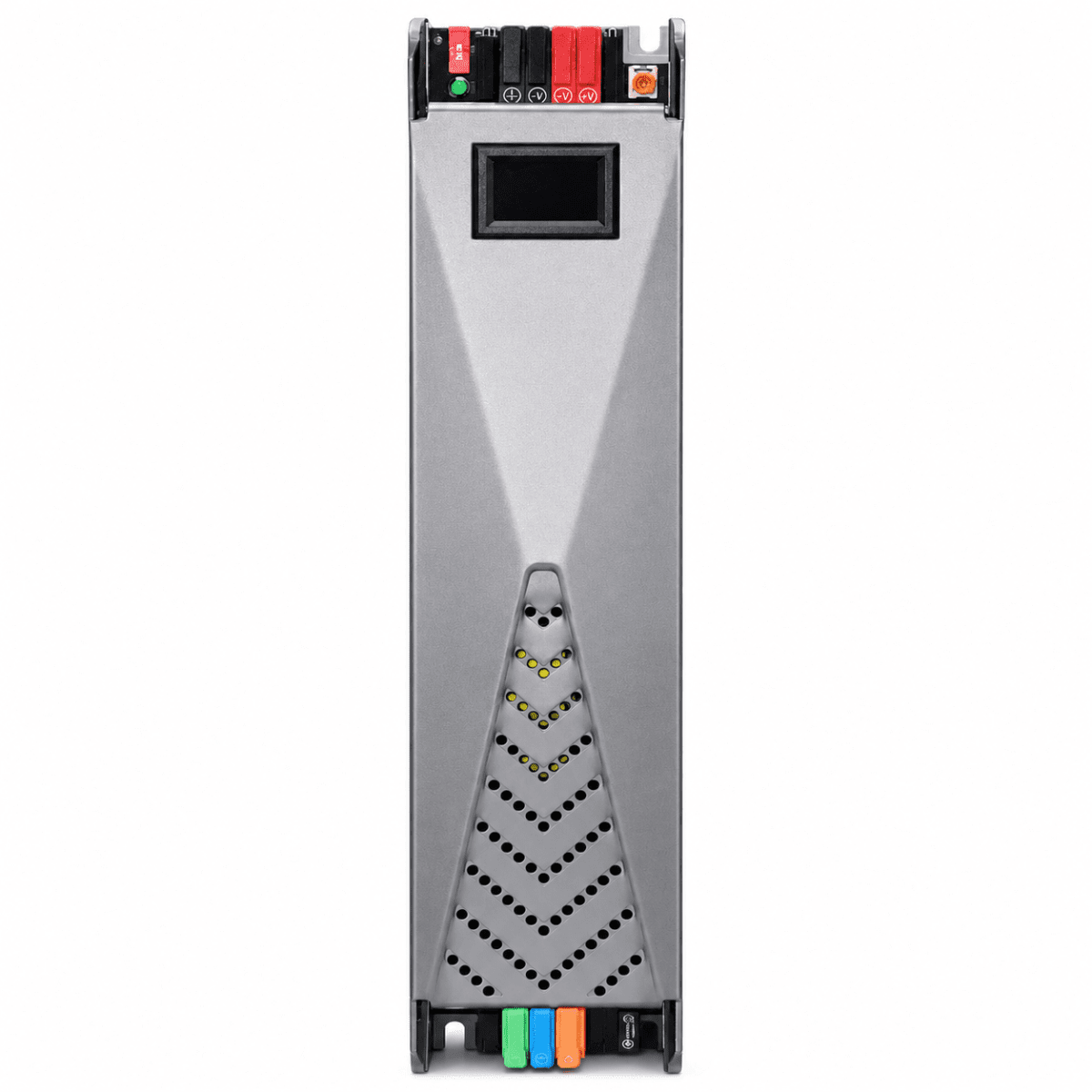

The metal housing features ventilation openings to assist with heat dissipation during operation. Clearly identified and color-coded terminals help simplify wiring and installation.
Technical Specifications
| Specification |
Details |
| Brand |
HI VISION |
| Model |
XT-24V-400W |
| Product Type |
Switching Power Supply |
| Rated Power |
400W |
| Output Voltage |
24V DC |
| Calculated Output Current |
Approx. 16.7A |
| Input Voltage |
AC 180–265V |
| Input Frequency |
50Hz |
| Output Voltage Tolerance |
±0.6V |
| Housing |
Metal |
| Cooling |
Ventilation openings |
| Input Ground |
Green – GND |
| Input Neutral |
Blue – ACN |
| Input Live |
Orange – ACL |
| Output Negative |
Black – Vo− |
| Output Positive |
Red – Vo+ |
| Temperature Warning |
High Temperature |
Applications
- 24V LED lighting
- 24V LED strips
- CCTV cameras and surveillance systems
- Security and alarm systems
- Electronic control systems
- Electrical control panels
- Industrial automation equipment
- 24V electronic devices
- Advertising and signage lighting
- Electronics and electrical projects
- Equipment requiring a 24V DC power supply
