Carling Technologies Series M single-pole magnetic circuit breaker, 12A rated, with 250VAC / 80VDC voltage rating, rocker actuator, panel-mount design, and hydraulic-magnetic delay.

Carling Technologies MA1-B-14-612-1-A26-7-J Circuit Breaker

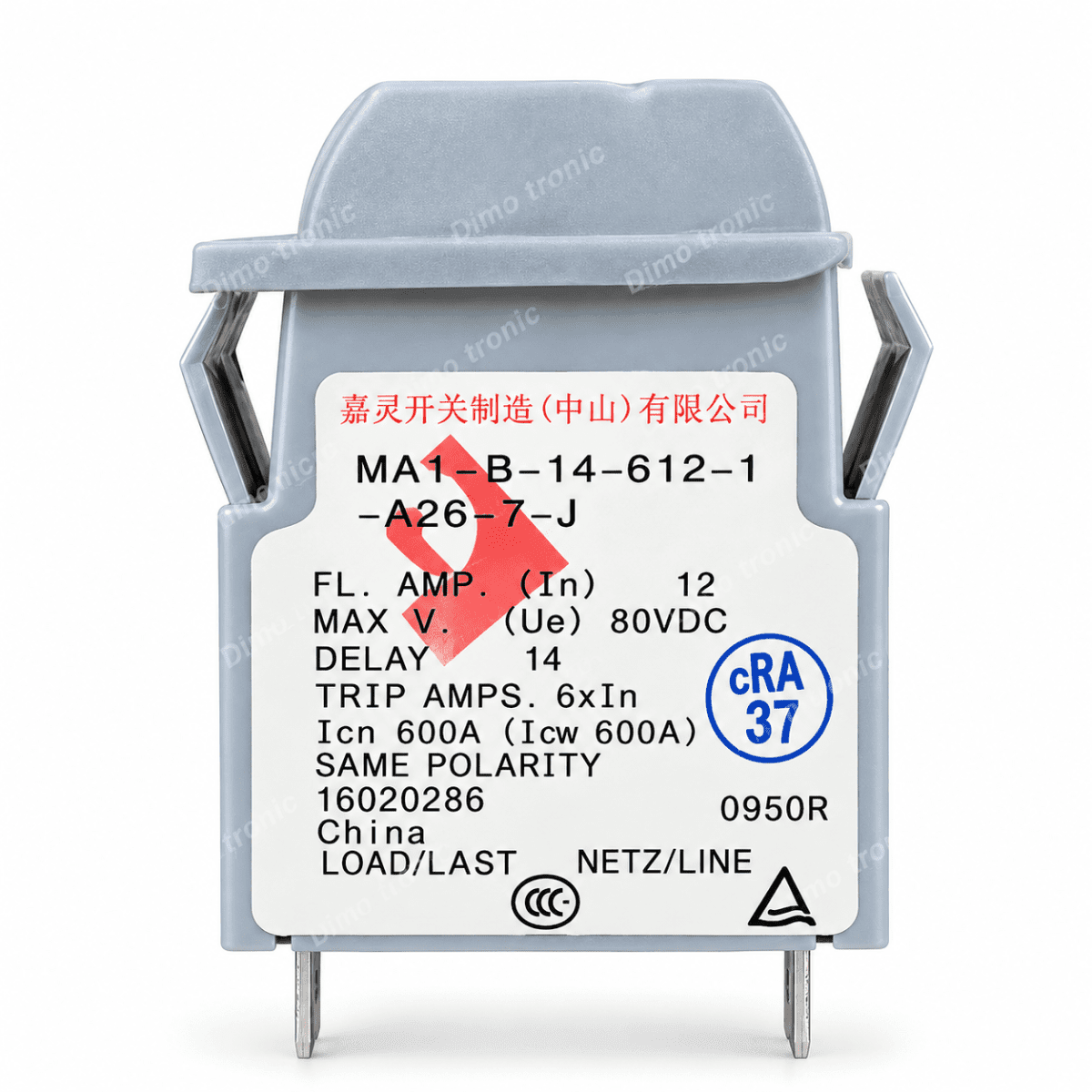

The Carling Technologies Series M MA1-B-14-612-1-A26-7-J is a single-pole magnetic circuit breaker designed for circuit protection in AC and DC electrical applications.

The breaker features a 12A current rating, 250VAC maximum AC voltage rating, and 80VDC maximum DC voltage rating. It uses a magnetic hydraulic-delay trip mechanism and a rocker actuator for convenient manual operation.

Its compact panel-mount construction makes it suitable for control panels, electronic equipment, industrial equipment and other applications requiring integrated circuit protection.

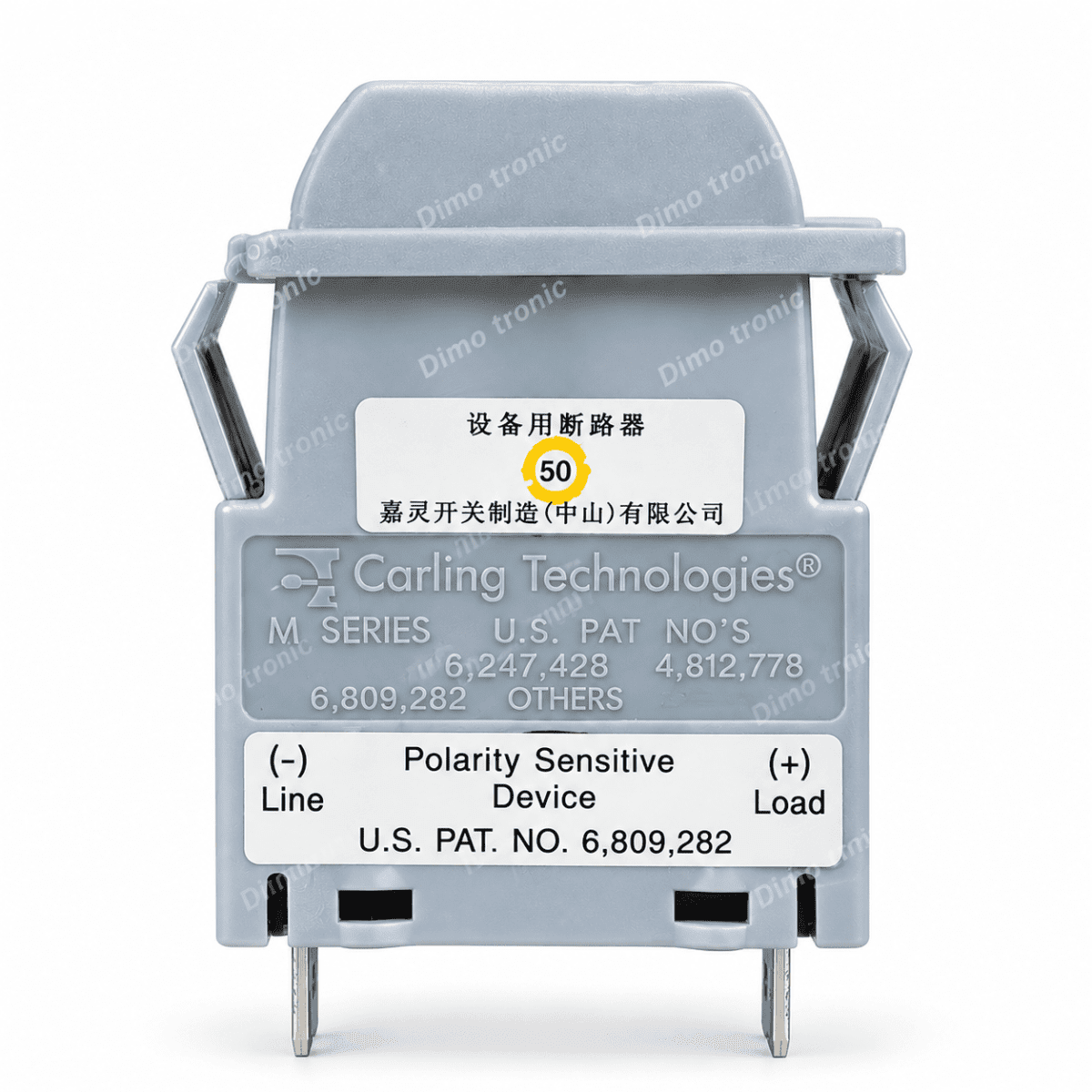

The rear of the unit is clearly marked for polarity-sensitive DC operation, with designated Line (-) and Load (+) terminals. Correct polarity and wiring should be observed when installing the breaker in DC applications.

Key Features

• Carling Technologies Series M
• Part Number: MA1-B-14-612-1-A26-7-J
• 12A current rating
• 250VAC maximum voltage rating
• 80VDC maximum voltage rating
• Single-pole configuration
• Magnetic / hydraulic-delay circuit breaker
• Rocker actuator
• Panel-mount design
• Polarity-sensitive DC operation
• CCC, TUV and UL489A approvals listed for this part number

Technical Specifications

Applications

• DC Power Systems
• AC Control Panels
• Industrial Equipment
• Electronic Equipment
• Power Distribution
• Battery-Powered Equipment
• Control Systems
• Electrical Protection Panels
• Telecommunications Equipment
